- Place of Origin: China
- Brand Name: Hot Rolled Steel H Beam
- Model Number: 100*100-900*300

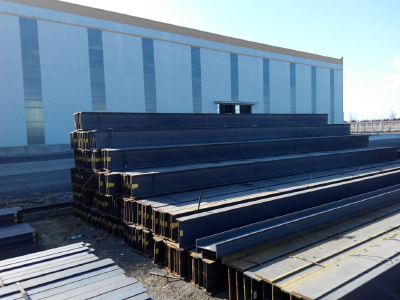

Hot rolled H beams
Specification
Standard:GB,JIS,EN
Grade: GB9787-88, Q235B, G3101 SS400/SS540, S235JR S275JR
Application
H beam is widely used in various building structure and engineering structure:
a).used for the plant, high-rise building construction
b). used for the bridge, shipment building
c). used for lifting and transportation machinery, equipment manufacturing base building
d). used for the support, foundation pile manufacturing
Size
European Standard H Beams
Specification | Web thickness | Flange thickness | Weight |
Depth*flange width | (mm) | (mm) | (kg/m) |
(mm) | |||
HE 240A 230*240 | 7.5 | 12 | 60.3 |
HE 240B 240*240 | 10 | 17 | 83.2 |
HE 260A 250*260 | 7.5 | 12.5 | 68.2 |
HE 260B 260*260 | 10 | 17.5 | 93 |
HE 280A 270*280 | 8 | 13 | 76.4 |
HE 280B 280*280 | 10.5 | 18 | 103 |
HE 300A 290*300 | 8.5 | 14 | 88.3 |
HE 300B 300*300 | 11 | 19 | 117 |
HE 320A 310*300 | 9 | 15.5 | 97.6 |
HE 320B 320*300 | 11.5 | 20.5 | 127 |
JIS H Beams
Size(mm) | kg/m | Size(mm) | kg/m |
100*100*6*8 | 16.9 | 340*250*9*14 | 78.1 |
125*125*6.5*9 | 23.6 | 346*174*6*9 | 41.2 |
148*100*6*9 | 20.7 | 350*175*7*11 | 49.4 |
150*75*5*7 | 14 | 350*350*12*19 | 135 |
150*150*7*10 | 31.1 | 390*300*10*16 | 105 |
175*90*5*8 | 18 | 400*200*8*13 | 65.4 |
175*175*7.5*11 | 40.4 | 400*400*13*21 | 172 |
194*150*6*9 | 29.9 | 440*300*11*18 | 121 |
198*99*4.5*7 | 17.8 | 446*199*8*12 | 65.1 |
200*100*5.5*8 | 20.9 | 450*200*9*14 | 74.9 |
200*200*8*12 | 49.9 | 488*300*11*18 | 125 |
244*175*7*11 | 43.6 | 496*199*9*14 | 77.9 |
248*124*5*8 | 25.1 | 500*200*10*16 | 88.2 |
250*125*6*9 | 29 | 588*300*12*20 | 147 |
250*250*9*14 | 71.8 | 596*199*10*15 | 92.5 |
294*200*8*12 | 55.8 | 600*200*11*17 | 103.4 |
298*149*5.5*8 | 32 | 700*300*13*24 | 182 |
298*201*9*14 | 65.4 | 800*300*14*26 | 207 |
300*150*6.5*9 | 36.7 | 900*300*16*28 | 240.1 |
300*300*10*15 | 93 |
GB (Chinese Standard H Beams)
Size(mm) | kg/m | SIize(mm) | kg/m | Size(mm) | kg/m |
100*50*5.0*7 | 9.54 | 294*302*12.0*12 | 85 | 450*200*9.0*14 | 76.5 |
100*100*6.0*8 | 17.2 | 298*149*5.5*8 | 32.6 | 458*417*30.0*50 | 415 |
125*50*6.0*8 | 13.3 | 300*150*6.5*9 | 37.3 | 482*300*11.0*15 | 115 |
125*125*6.5*9 | 23.8 | 300*300*10.0*15 | 94.5 | 488*300*11.0*18 | 129 |
148*100*6.0*9 | 21.4 | 300*305*15.0*15 | 106 | 496*199*9.0*14 | 79.5 |
150*75*5.0*7 | 14.3 | 340*250*9.0*14 | 79.7 | 498*432*45.0*70 | 605 |
150*150*7.0*10 | 31.9 | 344*348*10.0*16 | 115 | 500*200*10.0*16 | 89.6 |
175*90*5.0*8 | 18.2 | 346*174*6.0*9 | 41.8 | 506*201*11.0*19 | 103 |
175*175*7.5*11 | 40.4 | 350*175*7.0*11 | 50 | 582*300*12.0*17 | 137 |
194*150*6.0*9 | 31.2 | 350*350*12.0*9 | 137 | 588*300*12.0*20 | 151 |
198*99*4.5*7 | 18.5 | 390*300*10.0*16 | 107 | 594*302*14.0*23 | 175 |
200*100*5.5*8 | 21.7 | 394*398*11.0*18 | 147 | 596*199*10.0*15 | 95.1 |
200*200*8.0*12 | 50.5 | 396*199*7.0*11 | 56.7 | 600*200*11.0*17 | 106 |
200*204*12.0*12 | 56.7 | 400*200*8.0*13 | 66 | 606*201*12.0*20 | 120 |
244*175*7.0*11 | 44.1 | 400*400*13.0*21 | 172 | 692*300*13.0*20 | 166 |
248*124*5.0*8 | 25.8 | 400*408*21.0*21 | 197 | 700*300*13.0*24 | 185 |
250*125*6.0*9 | 29.7 | 414*405*18.0*28 | 233 | 792*300*14.0*22 | 191 |
250*250*9.0*14 | 72.4 | 428*407*20.0*35 | 284 | 800*300*14.0*26 | 210 |
250*255*14.0*14 | 82.2 | 440*300*11.0*18 | 124 | 890*299*15.0*23 | 213 |
294*200*8.0*12 | 57.3 | 446*199*8.0*12 | 66.7 | 900*300*16.0*28 | 243 |
